VD-A手拉葫芦
详细说明

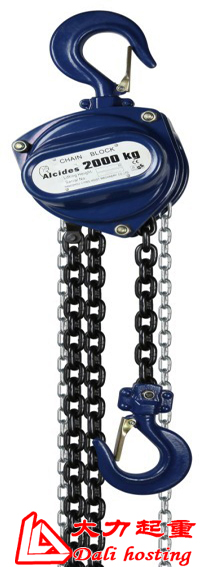

VD-A手拉葫芦
VD-A型号手拉葫芦，规格有0.5T,1T,1.5T,2T,3T,5T,7.5T,10T,15T,20T,30T,50T.起重高度为1到12米之间。
所标价格为0.5TX3M的价格，若需其他型号，请联系店家询价。
技术参数：
|
型号 |
额定载荷 |
标准扬程（m） |
吊钩间最小距离H(mm) |
提升平均手动力N(kg) |
载重链 |
手锁线径（mm）×节距(mm) |
自重（kg） |
|
|
线径(mm)×节距(mm) |
根数 |
|||||||
|
VD-0.25 |
250kg |
2.5 |
277 |
137(14) |
5×15 |
1 |
5×23.6 |
9 |
|
VD--0.5 |
0.5 |
2.5 |
277 |
265(27) |
5×15 |
1 |
5×23.6 |
9 |
|
VD-1 |
1 |
2.5 |
303 |
309(31.5) |
6.3×19 |
1 |
5×23.6 |
11.4 |
|
VD-1.6 |
1.6 |
2.5 |
338 |
407(41.5) |
7.1×21 |
1 |
5×23.6 |
14.7 |
|
VD-2 |
2 |
3 |
379 |
392(40) |
8×24 |
1 |
5×23.6 |
21 |
|
VD-2.5 |
2.5 |
3 |
416 |
397(40.5) |
9×27 |
1 |
5×23.6 |
25.4 |
|
VD-3.1 |
3.15 |
3 |
516 |
466(47.5) |
7.1×21 |
2 |
5×23.6 |
24 |
|
VD-5 |
5 |
3 |
613 |
470(48) |
9×27 |
2 |
5×23.6 |
39.5 |
|
VD-7.5 |
7.5 |
3.5 |
760 |
515(52.5) |
9×27 |
3 |
5×23.6 |
70 |
|
VD-10 |
10 |
3.5 |
789 |
515(52.5) |
9×27 |
4 |
5×23.6 |
82 |
规格尺寸：
|
型号 |
P min |
B |
C |
D |
E |
F |
G |
H |
I |
N |
|
VD-0.25 |
277 |
155 |
65 |
90 |
140 |
30 |
36 |
16 |
13 |
26 |
|
VD-0.5 |
277 |
155 |
65 |
90 |
140 |
30 |
36 |
16 |
13 |
26 |
|
VD-1 |
303 |
160 |
69 |
91 |
160 |
34 |
43 |
22 |
16 |
30 |
|
VD-1.6 |
338 |
167.5 |
75 |
92.5 |
183 |
39 |
48 |
27 |
20 |
35 |
|
VD-2 |
379 |
183 |
83 |
100 |
215 |
43 |
53 |
29 |
22 |
38 |
|
VD-2.5 |
416 |
190 |
90 |
100 |
233 |
45 |
55 |
34.5 |
24 |
40 |
|
VD-3.1 |
516 |
167.5 |
75 |
92.5 |
230 |
50 |
60 |
37 |
27 |
44 |
|
VD-5 |
613 |
190 |
90 |
100 |
282 |
58 |
70 |
46 |
34 |
53 |
|
VD-7.5 |
760 |
190 |
90 |
100 |
370 |
76.5 |
85 |
62.5 |
48 |
65 |
|
VD-10 |
789 |
190 |
90 |
100 |
385 |
76.5 |
85 |
62.5 |
48 |
65 |
